BFQ-25 aluminum alloy stainless steel pneumatic diaphragm pump 116L/min chemical pumpBFQ-25 aluminum alloy stainless steel pneumatic diaphragm pump 116L/min chemical pump

$43

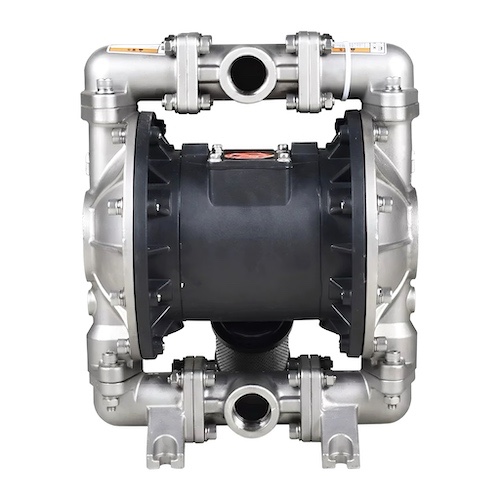

BFQ-25 Diaphragm Pump
Max. Flow: 31 gpm (116 lpm)
Max.working pressure: 120 psi (0.84 Mpa)
Max. suction lift: 5.48 m


PRODUCT PROFILE

Model Max.Flow (L/min)Max.Lift (m)Max.Suction Lift (m)Outlet Pressure (kg)DNAir Inlet DN (in)Grain Diameter (mm)
BFQ-25116845.488.4251/23.2
BFQ-40378.5845.488.4401/24.8
BFQ-50568845.488.4501/26.4
BFQ-801041845.488.4803/49.4
BFQ-12520006348.412519.4

Materials

Part NameMaterials
Fluid Contact PartsPP, Stainless Steel 304, Stainless Steel 316L, PVDF
DiaphragmSantoprene + Teflon
Valve BallPTFE
Ball SeatPTFE



Features:

The BFQ pneumatic diaphragm pump is a diaphragm pump used for the transfer of highly corrosive slurries, food liquid raw materials, and industrial raw materials. It is a long-life, stable transmission pump.


Changzhou Jward Technology Co., Ltd. is a company integrating R & D, production, sales and service. our main products include motors, pumps, valves and supporting equipments. Our company is located in Wujin District, Changzhou City, adjacent to first-tier cities such as Nanjing, Suzhou, Shanghai, and Hangzhou, and has very convenient transportation.

Our company specializes in the design, production and sales of motors, pumps, valves, water treatment and supporting equipment for many years. There are more than 30 varieties of all series of products. The products are sold to more than 30 domestic provinces and cities, as well as many countries and regions in Central Asia, Southeast Asia, etc.

We are a dynamic and efficient execution team. The team is composed of professional technical personnel and international trade sales personnel. Adhering to the "people-oriented, continuous innovation" philosophy, we take customers as the focus, listen to customers' voices, and provide customers that exceed our expectations quality products.
